Key Features

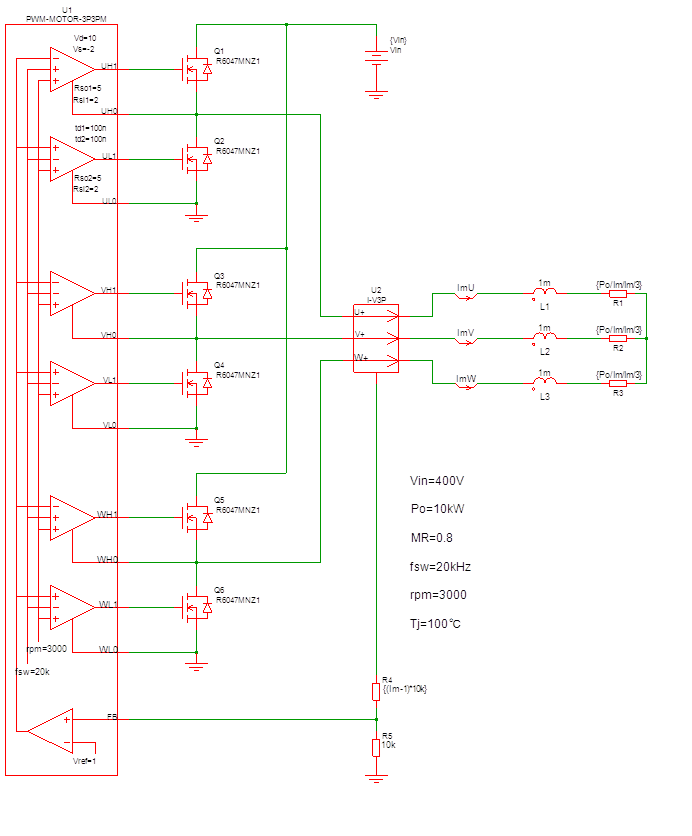

Spice Simulation Evaluation Circuit is available. Download Circuit Data

Input: Vin=400V

Output: Po=10kW

Vph_ph=320Vpk (Vin*MR)

Im=25.5A (Po/Vin/MR/√1.5)

PWM: fsw=20kHz (3-Phase Modulation)

rpm=3000

MR=0.8 (Vph_ph(pk)/Vin)

td1=100ns

td2=100ns

Gate Drive: Vd=10V Vs=-2V

R source1=5Ω

R sink1=2Ω

R source2=5Ω

R sink2=2Ω

Q1,2,3,4,5,6: R6047MNZ1 (600V 47A)

Si MOSFET

Fast Reverse Recovery

L1,2,3: 1mH

R1,2,3: {Po/Im/Im/3}

R4: {(Im-1)*10k}

R5: 10kΩ

Tj=100℃
