ITT Cannon APD 系列 2路 面板安装 直向 连接器 插座 121583-0026

ITT Cannon Connectors APD Series High Power Connectors 2 Way

ITT Cannon connectors APD series high power connectors 2 way are suitable for high power connector applications such as tail lifts and power supplies for antennas and base stations and heavy automotive connector uses. The APD series connectors small form and high power handling make them ideal for many applications. Durable hard wearing connectors derived from ISO 15170.

Operating voltage 48 VDC
Contact resistance 2 mΩ
Voltage proof 1000Vac (60 secs)
Insulation resistance 10 MΩ (min.)
Up to 50 mating cycles

注

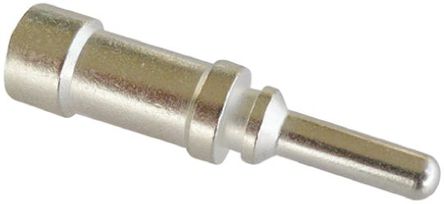

For socket contacts see: 752-5607 , 752-5593 , 752-5597 , for Pin contacts see: 752-5587 , 752-5590 , 752-5581 Wire seal see: 752-5600 , Endbells: 752-5569 , 752-5565, flange gasket (where applicable) :752-5562 and Cable sealing set: 752-5604 , 752-5613 . APD series hand crimp tool see: 752-5616

标准

DIN EN 60529, ISO 15170-2 sec.6.2, 6.3, 6.6, EN 60512
