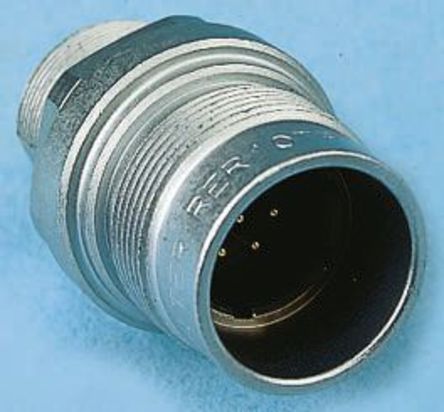

RER M 10TP N 07-20,254-6788,Souriau TP 系列 7路 面板安装 直向 连接器 插座 RER M 10TP N 07-20, 公触点 ,Souriau
10TP series round flange, screw mounted sockets.
Available in two arrangements: 4 size 16 contacts or 7 size 20 contacts.
Available in male or female versions (the insulation blocks are interchangeable).
The contacts can be soldered onto wire.
| Hole cut out diameter (K) | 18.2 mm |
| Overall length of the 10TP socket: | 37 mm |
| Max. at front: | M21 x 1 |
| Wire acceptance | - front contact size 20: AWG 26 → 22; 0.14 → 0.38 mm2 - contact size 16: AWG 22 to 18; section 0.38 to 0.93 mm2 |
|
| 产品描述 / 参考图片 | 制造商零件编号 / 制造商 / 库存编号 | 操作 | ||
| 制造商零件编号： RER M 10TP N 07-20 品牌： Souriau 库存编号： 254-6788 | 搜索 |
