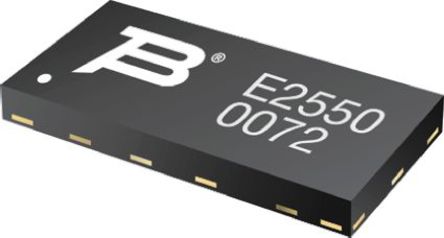

Bourns TBU-KE050-200-WH 单向 TVS 二极管, 500V, 10针 DFN封装

Bourns TBU High Speed Circuit Protector, KE Series

The TBU-KE series of Bourns TBU are low capacitance unidirectional high speed surge protectors designed to
protect against faults caused by short circuits, induction and lightning surges and AC power cross.These TBU circuit protectors will trip in less than 1 μs when the current reaches the maximum value in one direction. The TBU KE series circuit protector blocks sudden surges in voltage or current and provides a barrier behind which electronics will not be exposed to damage. Post surge, the TBU device resets when the voltage across the TBU device falls to the Vreset level. Typical applications include Ethernet ports, protection modules, dongles and process control equipment.

Superior circuit protection
Overcurrent and overvoltage protection
Blocks surges up to rated limits
High speed performance
Small SMT package
Operating temperature range -40°C → +85°C

注

Maximum voltage shown is peak impulse voltage withstand with a duration of no more than 10ms.

认可

UL E315805
