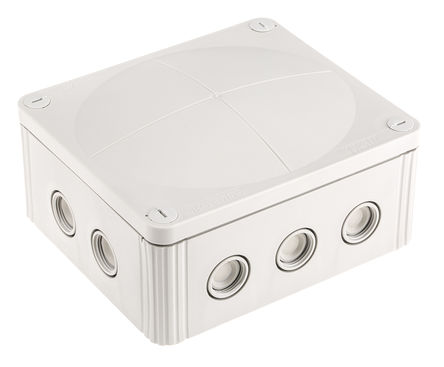

WISKA Combi 系列 灰色 聚丙烯 IP66, IP67 接线盒 1210/5/G, 160 x 140 x 81mm

制造商零件编号:
1210/5/G
制造商:
WISKA WISKA
库存编号:
771-9540
WISKA 1210/5/G
声明:图片仅供参考,请以实物为准!

1210/5/G产品详细信息

COMBI 1210 Junction Box

The COMBI 1210 junction box from WISKA is a solid thermoplastic, flame retardant enclosure which offers 10% more room inside thanks to its domed cover. With ten M20 entries in the sides of the junction box and 4 in the base, as well as a knockout option, the COMBI 1210 offers ideal installation conditions.

10% more room inside, thanks to the bellied cover
Solid thermoplastic housing made from 2 different moulded materials
10 x M20 entries with elastic soft membrane and thread, 3 in each side and 2 in each end (option of using M25 knockouts instead)
4 x M20 entries with self-sealing membrane in the base of the junction box enable assembly directly from the wall
Quick release lid screws made of plastic will not rust and stay securely in place
Weather proof, resistant to ultraviolet, shatter proof and impact resistant
Flame retardant and halogen free
Mounted via holes in the corners of the box, separated from the inside of the enclosure, thus not effecting the IP rating

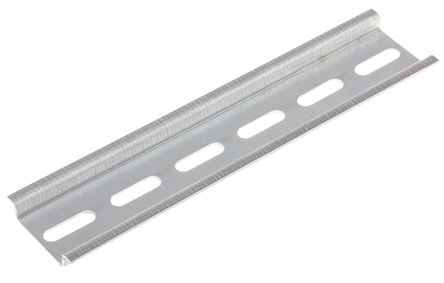

A DIN Rail kit for mounting with clamps and an earthing kit to connect BW/CW cable glands when using SWA cables are available separately

标准

EN60529, EN60695-2-11

1210/5/G产品技术参数

  IP 额定值  IP66, IP67
  材料  聚丙烯
  长度  160mm
  尺寸 长 x 宽 x 高  160 x 140 x 81mm
  额定电流  57A
  高度  81mm
  宽度  140mm
  系列  Combi
  线路数目  10
  颜色  灰色
