MEE3S1212SC,751-1462,Murata Power Solutions MEE3 系列 3W 隔离式直流-直流转换器 MEE3S1212SC, 10.8 → 13.2 V 直流输入, 12V dc输出, 250mA输出, 1kV dc隔离电压 ,Murata Power Solutions

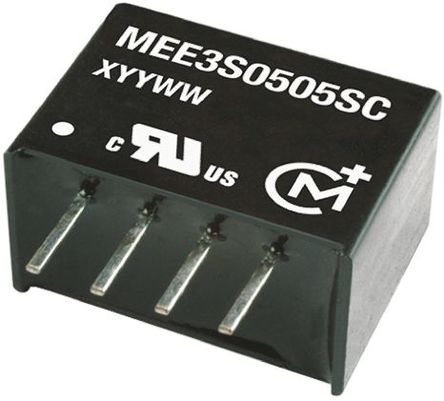

MEE3 series isolated 3W single output DC/DC converters with an industry standard SIP package. These 3W single output isolated DC/DC converters have a high efficiency and power density and offer a full 3W load performance under a wide temperature range. Typical applications this MEE3 series of DC/DC converters include providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation.
High efficiency of up to 89% typically
High power density of 2.68W/cm3
Industry standard pinout
Performance at full load at wide temperature range of -40°C to 85°C
Fully encapsulated with toroidal magnetics
No heatsink or external components required
No electrolytic or tantalum capacitors
UL 94V-0 package material
MTBF to MIL-HDBK-217F FN2 with nominal input voltage at full load
cULus
UL 60950
|
|
|
|
|
|
