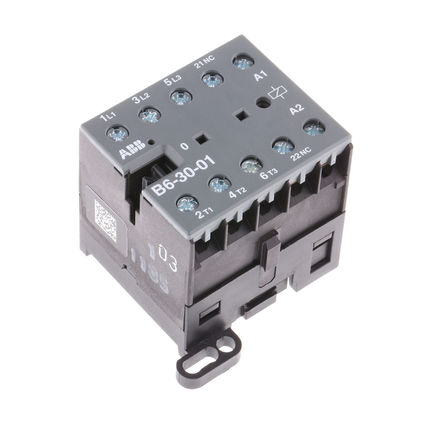

B6-30-01-80,445-8116,ABB B 系列 B6 系列 接触器 B6-30-01-80, 3 常开触点, 9 A, 240 V 交流线圈 ,ABB
B(C)6 — 电动机额定值 4 kW
B(C)7 — 电动机额定值 5.5 kW
4 引脚
开关阻性负载（使用类别 AC1）
切换笼式转子电动机（使用类别 AC3）
用于螺钉或 DIN 导轨组件
总宽度 47.5 mm
无波纹
| Technical specifications | |||
| Type | Coil voltage | Motor rating (AC3) | Contact assignment (main/auxiliary contacts) |
| B 6-30-10 | 220 to 240Vac | 4kW | 3NO / 1NO |
| B 6-30-01 | 220 to 240Vac | 4kW | 3NO / 1NC |
| B 7-30-10 | 220 to 240Vac | 5.5kW | 3NO / 1NO |
| B 7-30-01 | 220 to 240Vac | 5.5kW | 3NO / 1NC |
| BC 6-30-10 | 24Vdc | 4kW | 3NO / 1NO |
| BC 6-30-01 | 24Vdc | 4kW | 3NO / 1NC |
| BC 7-30-10 | 24Vdc | 5.5kW | 3NO / 1NO |
| BC 7-30-01 | 24Vdc | 5.5kW | 3NO / 1NC |
| Power consumption B6/B7 | 3.5VA |
| Power consumption BC6/BC7 | 3.5W |
| Rated insulation voltage | 690V |
| Mech. Service life | 10 m switching cycles |
| Ambient temperature: | -25°C to +50°C |
| Cross-reference to manufacturer's part number | |
| Stock no. | Manuf. Part no. |
445-0825 | GJL1211001R0101 |
445-0831 | GJL1211001R0104 |
445-0847 | GJL1211001R8100 |
445-0853 | GJL1311001R0101 |
445-0869 | GJL1311001R0104 |
445-8116 | GJL1211001R8010 |
445-0881 | GJL1311001R8100 |
445-8122 | GJL1311001R8010 |
445-7860 | GJL1213001R0101 |
445-8144 | GJL1213001R0011 |
445-8150 | GJL1313001R0101 |
455-6175 | GJL1313001R1011 |
