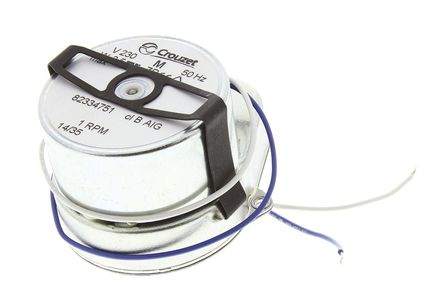

82 334 5-AIG-1 RPM,181-2315,顺时针方向 同步 齿轮传动电动机, 1 rpm, 3 W ,Crouzet
Range of single-directional (clockwise or anticlockwise) synchronous geared motors.
These geared motors have a non-return system to prevent problems occurring when stopping.
| Supply voltage: | 230 Vac |
| Frequency: | 50 Hz |
| Torque: | 5 U / min: 500 mNm |
| 6 U / min: 500 mm | |
| 15 U / min: 250 mNm | |
| 20 U / min: 180 mNm | |
| Power consumption: | 3.5 W |
| Motor output power: | 0.42 W |
| Output shaft with or without flat: | ? 4 mm |
| Shaft excess (relative to the support face): | 13.2 mm |
| Wire length: | 250 mm approx. |
| Weight: | 210 g |
| Operating temperature: | –5 °C → +60 °C |
|
