Multi Contact 红色 10A 测试引线, 5kV, 公

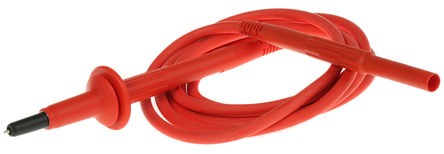

5kV Probe Lead XHL-5000

1.5m long highly flexible test lead. One end has ? 4mm test probe with spring loaded Multilam?, and the other end has in-line Multilam? plug with rigid insulating sleeve. Supplied with protective cap. Cable insulation is thermoplastic elastomer TPE. It is environmentally friendly halogen free, with extremely high insulation resistance 1.5x10¹⁴Ω.

Voltage rating 5kV (ie. Output voltage of Test instrument)
Current rating 10A on 4mm probe tip

注

For safety reasons, the lead is only compatible with XHB-5000 panel socket.
